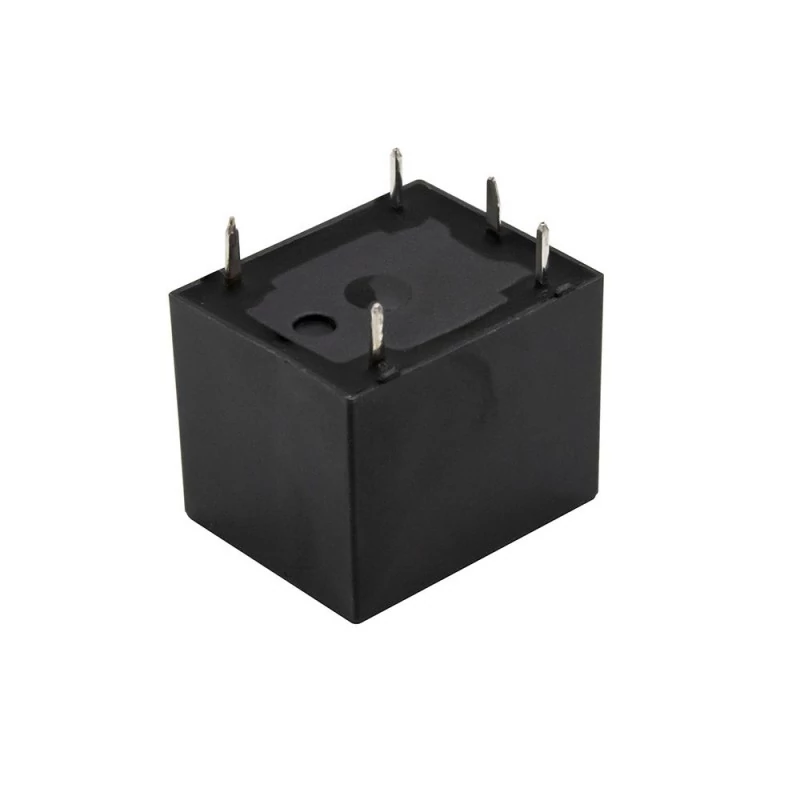

رله 24V پایه میلون T73 مارک LIMING کد JQC-3F-1C-24VDC

رله 24V پایه میلون T73 مارک LIMING کد JQC-3F-1C-24VDC Outline Dimension(L×W×H): 19×15.5×15.5 Dielectric Strengh Between Open Contact: 750VAC Contact Form: 1A,1B,1C Between Coil and Contact: 1500VAC Contact Resistance: 100 mΩ Coil Voltage: 5VDC ~ 48VDC Electrical: 10^5 Mechanical: 10^7 Pick-up Voltage: ≤75% Temperature Range: -40~ +70℃ Release Voltage: ≥10% Coil Power(W): 0.36 Mounting Form: PCB Terminal Contact Rating: 10A/15A  120VAC 7A  240VAC 10A 28VDC Weight: 10g Insulation Resistance: 100 MΩ Safty Approval: UL
