رید رله 14mm پایه طلایی

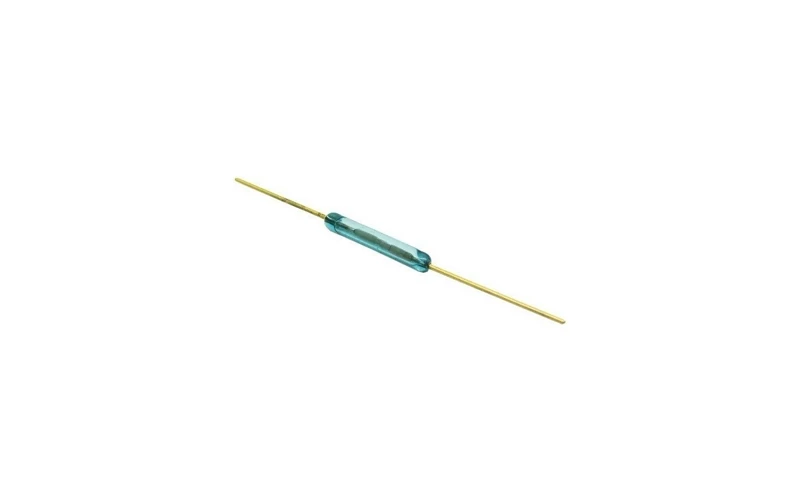

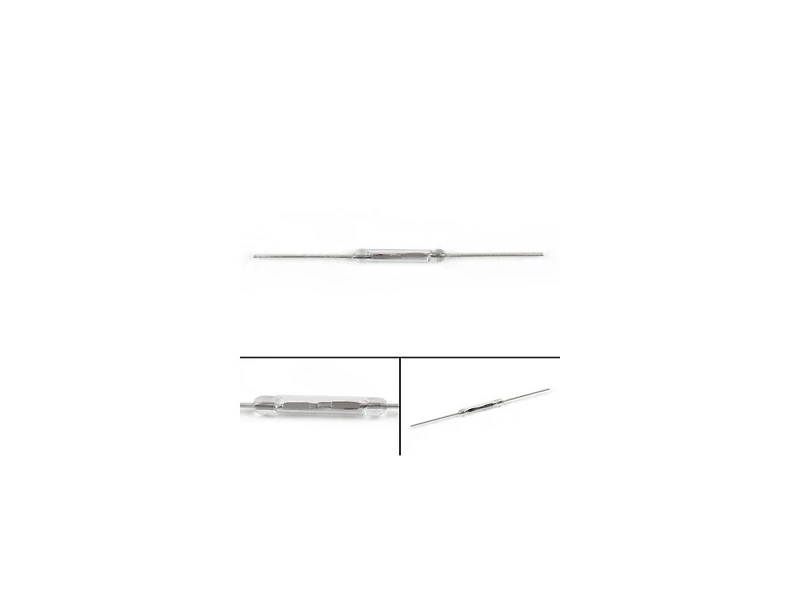

رید رله 14mm پایه طلایی Introduction These dry-reed switches have been hermetically sealed in a gas-filled glass envelope. Actuation is done with an electro-magnet, a permanent magnet or a combination of both. If you prefer, they can be placed alongside a coil and actuated when a current is applied to the coil. They feature single pole, single throw, normally open contacts. Please note when bending or cutting the leads be careful not to put any stress on them as this will break the hermetic seal. Specification Glass : Length: 14mm Glass : Diameter: 2mm Total length : 43mm Contact: Normal Open Maximum switching voltage : 300 VDC Minimum breakdown voltage : 150 VDC Maximum contact rating : 10W Maximum switching current : 0.55 A Maximum operate time : 0.45 ms Bounce time : 0.25 ms Maximum release time : 0.35 ms Resonant frequency : 5000 HZ Maximum operating frequency : 400 HZ Pull in value : 20-70 AT Minimum drop out value : 4 AT Maximum contact capacitance : 0.5 pF
