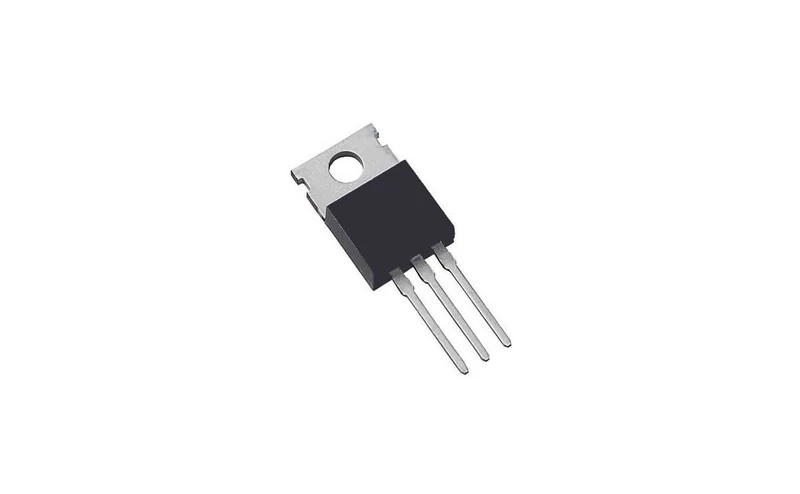

ماسفت IRFZ48N پکیج TO-220

ماسفت IRFZ48N پکیج TO-220 Product Category:     MOSFET RoHS:     No Technology:     Si Mounting Style:     Through Hole Package/Case:     TO-220-3 Number of Channels:     1 Channel Transistor Polarity:     N-Channel Vds - Drain-Source Breakdown Voltage:     60 V Id - Continuous Drain Current:     50 A Rds On - Drain-Source Resistance:     18 mOhms Vgs - Gate-Source Voltage:     20 V Maximum Operating Temperature:     + 175 C Configuration:     Single Fall Time:     250 ns Height:     9.01 mm Length:     10.41 mm Minimum Operating Temperature:     - 55 C Pd - Power Dissipation:     190 W Rise Time:     250 ns Series:     IRFZ48 Transistor Type:     1 N-Channel Typical Turn-Off Delay Time:     210 ns Typical Turn-On Delay Time:     8.1 ns FEATURES • Dynamic dV/dt Rating • Repetitive Avalanche Rated • Ultra Low On-Resistance • Very Low Thermal Resistance • 175 °C Operating Temperature • Fast Switching • Ease of Paralleling • Compliant to RoHS Directive 2002/95/EC PRODUCT SUMMARY VDS (V) 60 RDS(on) (Ω) VGS = 10 V 0.018 Qg (Max.) (nC) 110 Qgs (nC) 29 Qgd (nC) 36 Configuration Single
