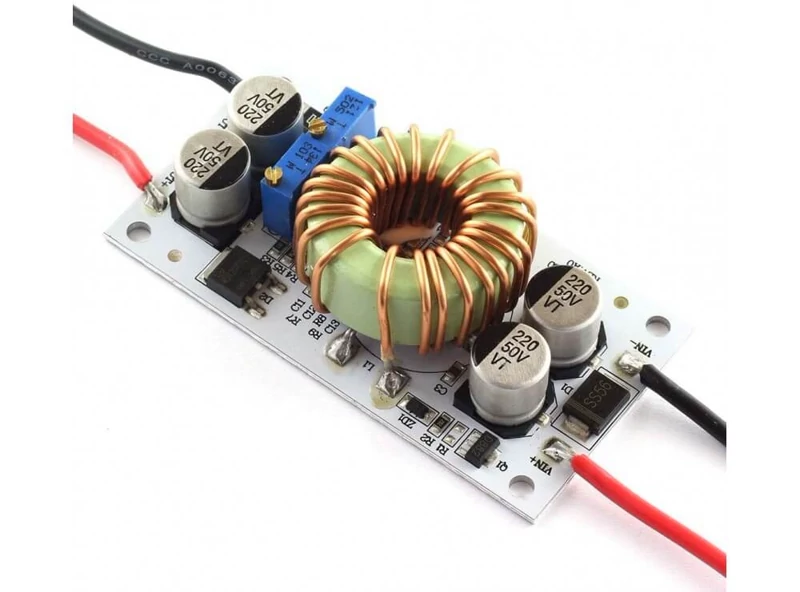

ماژول مبدل DC-DC افزاینده 250W برد آلومینیومی

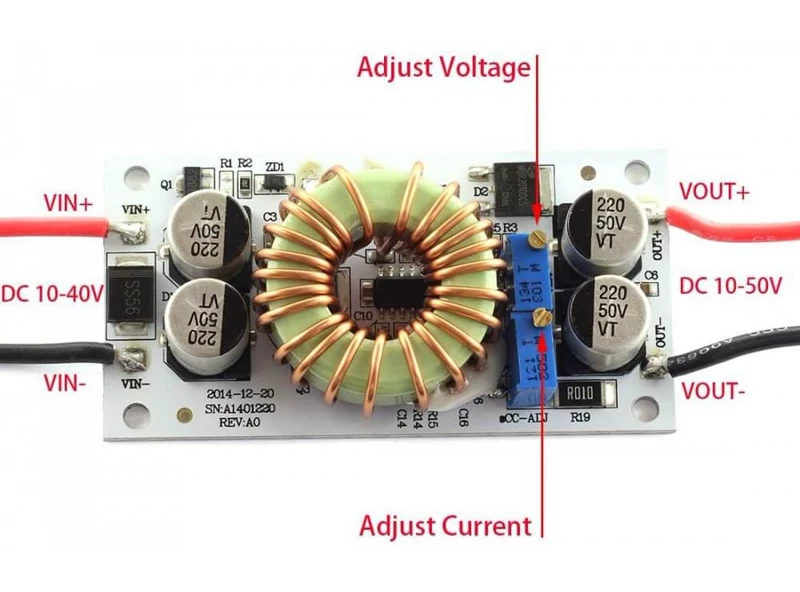

تبدیل 12 ولت به 24 ولت شارژرها منابع تغذیه و.... مشخصات ولتاژ ورودی: 10 تا 40 ولتDC ولتاژ خروجی: 10 تا 50 ولت DC حداکثر جریان خروجی: 6 آمپر حداکثر جریان ورودی: 6 آمپر (بالای 4 آمپر باید از هیت سینک استفاده کنید) امکان تنظیم جریان خروجی از اتصال کوتاه کردن خروجی و بر عکس زدن قطب ها پرهیز شود حداکثر دمای مجاز هیت سینک : 80 درجه ی سانتی گراد Module Name: 250W Booster Constant Voltage Constant Current Module Module Type: Non-isolated booster module (BOOST) Input Voltage: DC 10V-40V Input Current: 6A (MAX) Static Working Current: 10mA (The higher output voltage, the higher static current) Output Voltage: 10-50V Continuing Adjust Output Current: 6A MAX, Please enhance heat sink if exceed 4A (The larger voltage difference between input and output, the smaller output current) Constant Current Range: 0.2-6A Output Power: 250W (max), suggest to leave some slack for long time work Working Temperature: -40 to +85 degree Celsius (Please enhance heat sink for over-temperature) Operating Frequency: 150KHz Conversion Efficiency: 92%-96% (Efficiency is related to input, output voltage, current and voltage difference) Input Reverse Connection Protection: YES Mounting Type: 4PCS 3mm screw hole Connection Mode: Lead wire output Module Size: 70x36x13mm(LxWxH) Output voltage/current regulation method: 1. Adjust the CV-ADJ potentiometer to set the output voltage to the desired voltage according to your battery or LED. 2. Turn CC-ADJ potentiometer clockwise for about 30 turns, set the output current to the minimum, connect the LED, and turn CC-ADJ potentiometer to the current you need. If it is used for battery charging, after the battery is fully discharged, and then connected to the output, adjust CC-ADJ potentiometer to the current you need (the more residual battery power, the lower charging current).
