ماژول آمپلی فایر صوتی بلوتوث دار 20-10 وات مدل XY-P15W

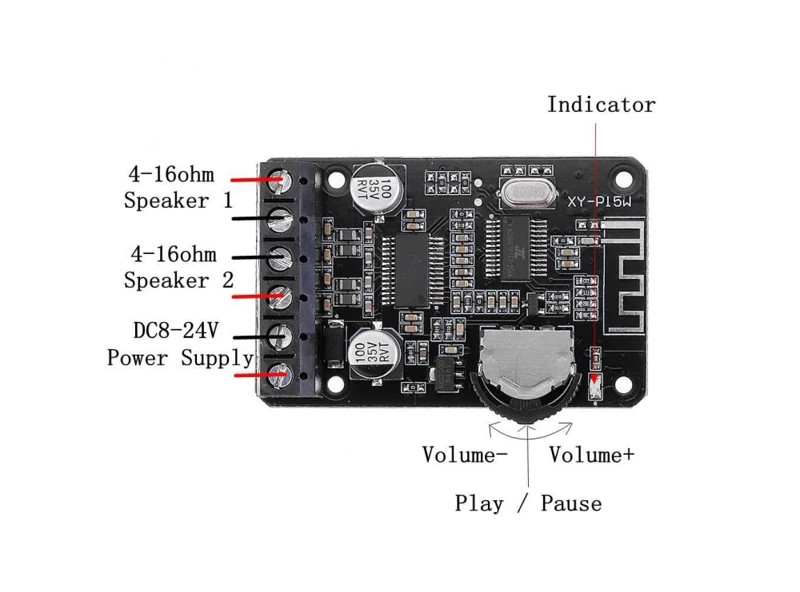

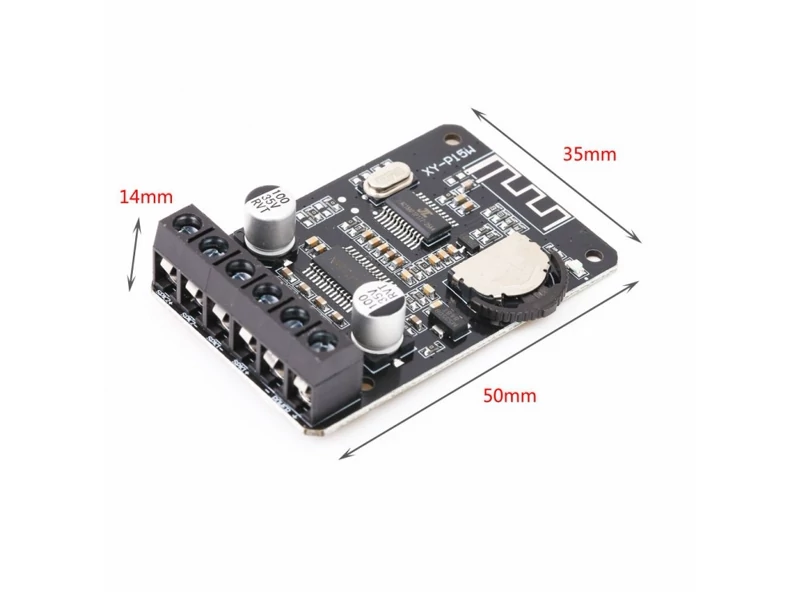

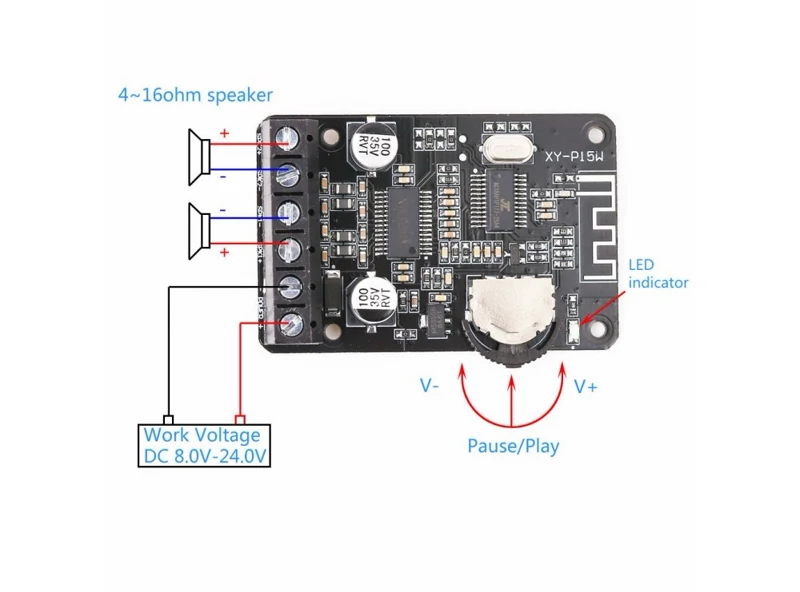

Overview: Bluetooth Power Amplifier Module: Output: Daul Channel Voltage: DC 8V-24V Communication Range: 15m Description: XY-P15W High Power Digital  Dual Channel Stereo Bluetooth 5.0  Power Amplifier Module. Dual channels audio signal at the output. It can directly connect to loudspeaker as it has inbuilt Amplifier Module.It is ideal for DIY wireless Bluetooth speakers and transponders. Features: Wide working voltage range Applicable for multiple type speakers Knob adjustment function Support reverse connection protection Support short circuit protection Self-recovery overheat protection Specifications: Product name:XY-P15W Stereo Bluetooth Power Amplifier Module Model:XY-P15W Working Voltage:DC 8V-24V Communication distance:15meter(Max) Channel:Dual channel Output Power(at 1KHz): Output power 16W*2 at 12V 4ohm Output power 10W*2 at 12V 8ohm Output power 15W*2 at 16V 4ohm Output power 20W*2 at 20V 4ohm Output power 30W*2 at 24V 4ohm(Need add extra heat sink!) Match speaker(30W~150V): 4ohm at 8V~12V 8ohm at 8V~24V 16ohm at 8V~24V Work Temperature:-40℃~85℃ Work Humidity:0%~95%RH Module Size:50*35*14mm Use steps: Choose the right speaker and connect as shown in wiring diagram. Connect to right power supply from input terminal.LED indicator will flashing and it means that module enters pairing mode.And then speak prompt voice and it means that module is waiting for pairing. Turn ON Bluetooth in phone. Select Bluetooth device ‘XY-P15W’ in your Bluetooth device listing. LED indicator will keep ON and it means that module is successfully connected and is waiting for playing. Module will playing music after select music in phone.LED indicator will keep slowly blinking. Module will speak prompt voice if disconnected. Application: Modified speaker Amplifier equipment Vehicle Bluetooth device(car) Note: The power amplifier board should be as far away as possible from the WIFI signal (router) avoid signal interference. Recommended power supply voltage DC 8~24V.Module will be damaged if input voltage is more than 26V. Input voltage can not more than 12V if connect 4ohm speaker. Input voltage can not more than 24V if connect 8ohm speaker. It is recommended to use a power supply of 2A or higher. It need add extra heat sink if output power is more than 20W*2. Please don’t use too long wires to avoid signal interference. It is recommended to use a speaker above 30W to avoid speaker damage. Please read use manual and description before use.
