دستهبندی : قطعات الکترونیک

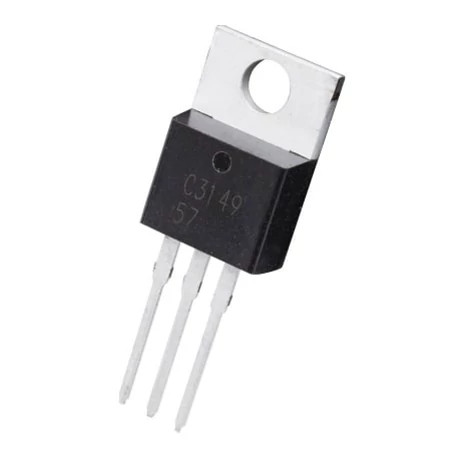

ترانزیستور BTC3149E3 تایوانی مارک CYStek پکیج TO-220
ترانزیستور BTC3149E3 تایوانی مارک CYStek پکیج TO-220
Brand: CYStek
Type Designator: BTC3149E3
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 40 W
Maximum Collector-Base Voltage |Vcb|: 1600 V
Maximum Collector-Emitter Voltage |Vce|: 800 V
Maximum Emitter-Base Voltage |Veb|: 6 V
Maximum Collector Current |Ic max|: 1.2 A
Max. Operating Junction Temperature (Tj): 150 °C
Collector Capacitance (Cc): 10 pF
Forward Current Transfer Ratio (hFE), MIN: 24
Package: TO-220
