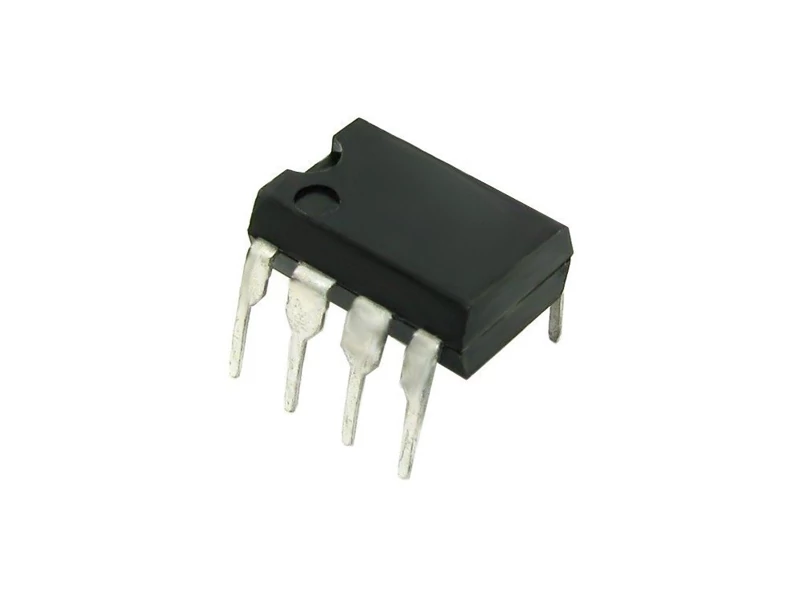

آپ امپ UA741CN پکیج DIP

آپ امپ UA741CN پکیج DIP دیتاشیت Manufacturer: Texas Instruments Series: UA741CN / LM741CN Product Category: Operational Amplifiers - Op Amps RoHS: Details Mounting Style: Through Hole Package / Case: PDIP-8 Supply Voltage - Max: 36 V Number of Channels: 1 Channel GBP - Gain Bandwidth Product: 1 MHz SR - Slew Rate: 0.5 V/us CMRR - Common Mode Rejection Ratio: 70 dB to 90 dB Ib - Input Bias Current: 500 nA Vos - Input Offset Voltage: 5 mV Supply Voltage - Min: 7 V Operating Supply Current: 1.7 mA Minimum Operating Temperature: 0 C Maximum Operating Temperature: + 70 C Shutdown: No Shutdown Packaging: Tube Amplifier Type: General Purpose Amplifier Height: 4.57 mm Length: 9.81 mm Product: Operational Amplifiers Supply Type: Dual Technology: Bipolar Width: 6.35 mm Brand: Texas Instruments Dual Supply Voltage: +/- 5 V, +/- 9 V, +/- 12 V, +/- 15 V Maximum Dual Supply Voltage: +/- 18 V Minimum Dual Supply Voltage: +/- 3.5 V Operating Supply Voltage: +/- 3.5 V to +/- 18 V Pd - Power Dissipation: 500 mW (1/2 W) Product Type: Op Amps - Operational Amplifiers
