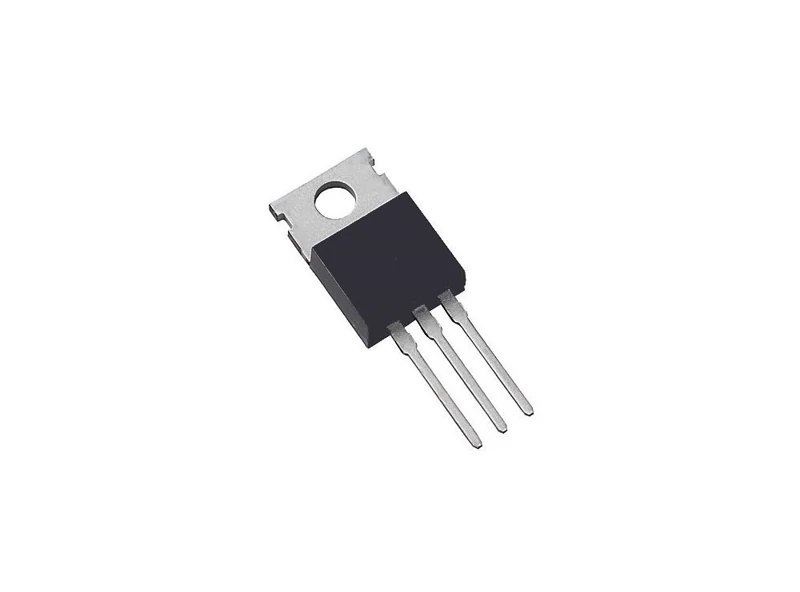

ماسفت FQP8N60C پکیج TO-220

ماسفت FQP8N60C پکیج TO-220 Specification Manufacturer:onsemi Product Category:MOSFET RoHS: Details Technology:Si Mounting Style:Through Hole Package / Case:TO-220-3 Transistor Polarity:N-Channel Number of Channels:1 Channel Vds - Drain-Source Breakdown Voltage:600 V Id - Continuous Drain Current:7.5 A Rds On - Drain-Source Resistance:1.2 Ohms Vgs - Gate-Source Voltage:- 30 V, + 30 V Vgs th - Gate-Source Threshold Voltage:4 V Qg - Gate Charge:28 nC Minimum Operating Temperature:- 55 C Maximum Operating Temperature:+ 150 C Pd - Power Dissipation:147 W Channel Mode:Enhancement Packaging:Tube Brand:onsemi / Fairchild Configuration:Single Fall Time:64.5 ns Forward Transconductance - Min:8.7 S Height:16.3 mm Length:10.67 mm Product Type:MOSFET Rise Time:60.5 ns Series:FQP8N60C Subcategory:MOSFETs Transistor Type:1 N-Channel Type:MOSFET Typical Turn-Off Delay Time:81 ns Typical Turn-On Delay Time:16.5 ns Width:4.7 mm
