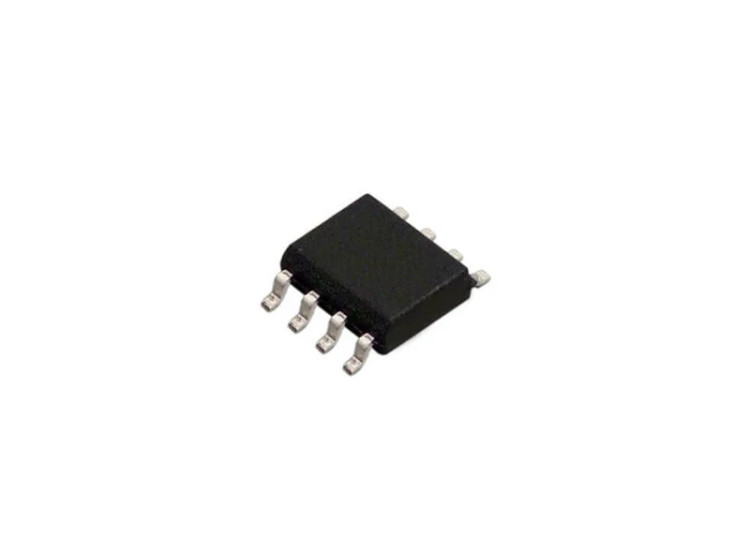

تراشه TDA2822M پکیج SMD

تراشه TDA2822M پکیج SMD دیتاشیت  RoHS:RoHS Compliant Details Product:Audio Amplifiers Class:Class-AB Output Power:2 W Mounting Style:Through Hole Type:1-Channel Mono or 2-Channel Stereo Package / Case:PDIP-8 Audio - Load Impedance:32 Ohm THD plus Noise:0.2 % Supply Voltage - Max:15 V Supply Voltage - Min:1.8 V Maximum Operating Temperature:+ 150 C Packaging:Tube Brand:STMicroelectronics Description/Function:Headphone/Speaker Gain:39 dB Height:3.32 mm Ib - Input Bias Current:100 nA Input Type:Single Length:10.92 mm Minimum Operating Temperature:- 40 C Number of Channels:2 Channel Operating Supply Current:1 A Operating Supply Voltage:3 V, 5 V, 9 V, 12 V Output Current:1000 mA Output Signal Type:Differential, Single Pd - Power Dissipation:1400 mW PSRR - Power Supply Rejection Ratio:40 dB Series:TDA2822M
