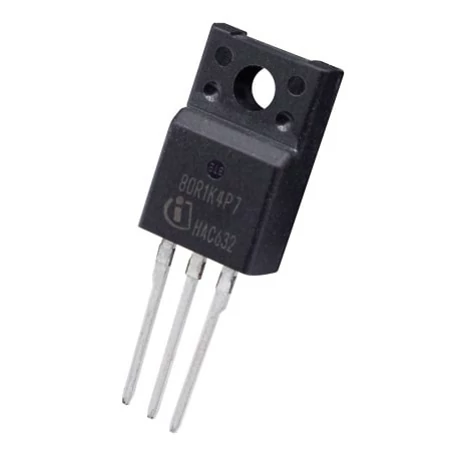

ماسفت 80R1K4P7 تایوانی مارک Infineon پکیج TO-220FP
ماسفت 80R1K4P7 تایوانی مارک Infineon پکیج TO-220FP
Brand : Infineon
Marking Code: 80R1K4P7
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 24 W
Maximum Drain-Source Voltage |Vds|: 800 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 3.5 V
Maximum Drain Current |Id|: 4 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 10 nC
Rise Time (tr): 8 nS
Drain-Source Capacitance (Cd): 6.5 pF
Maximum Drain-Source On-State Resistance (Rds): 1.4 Ohm
Package: TO220FP
