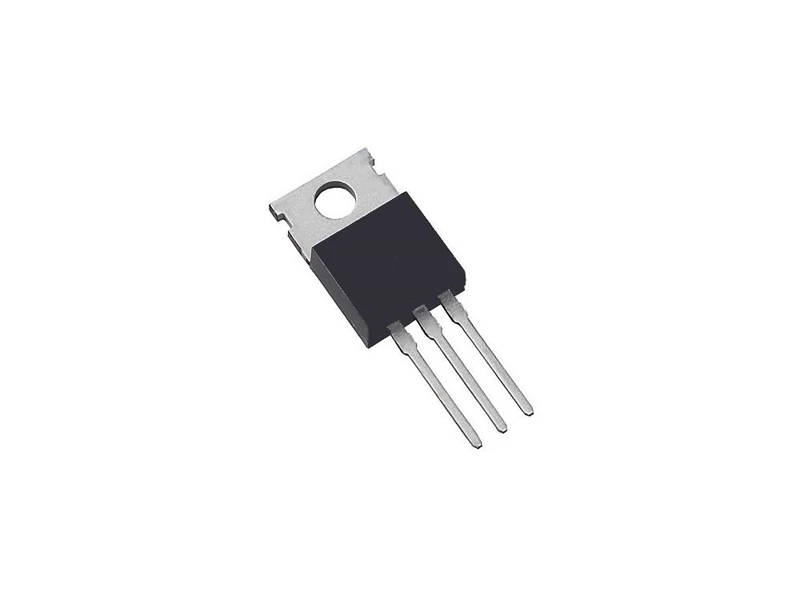

ماسفت FQP2N60C پکیج TO-220

ماسفت FQP2N60C پکیج TO-220 Specification Product Category:MOSFET RoHS: Details Technology:Si Mounting Style:Through Hole Package / Case:TO-220-3 Transistor Polarity:N-Channel Number of Channels:1 Channel Vds - Drain-Source Breakdown Voltage:600 V Id - Continuous Drain Current:2 A Rds On - Drain-Source Resistance:4.7 Ohms Vgs - Gate-Source Voltage:- 30 V, + 30 V Vgs th - Gate-Source Threshold Voltage:2 V Qg - Gate Charge:12 nC Minimum Operating Temperature:- 55 C Maximum Operating Temperature:+ 150 C Pd - Power Dissipation:54 W Channel Mode:Enhancement Tradename:QFET Brand:onsemi / Fairchild Configuration:Single Fall Time:28 ns Forward Transconductance - Min:5 S Height:16.3 mm Length:10.67 mm Product Type:MOSFET Rise Time:25 ns Series:FQP2N60C Subcategory:MOSFETs Transistor Type:1 N-Channel Type:MOSFET Typical Turn-Off Delay Time:24 ns Typical Turn-On Delay Time:9 ns Width:4.7 mm Part # Aliases:FQP2N60C_NL
