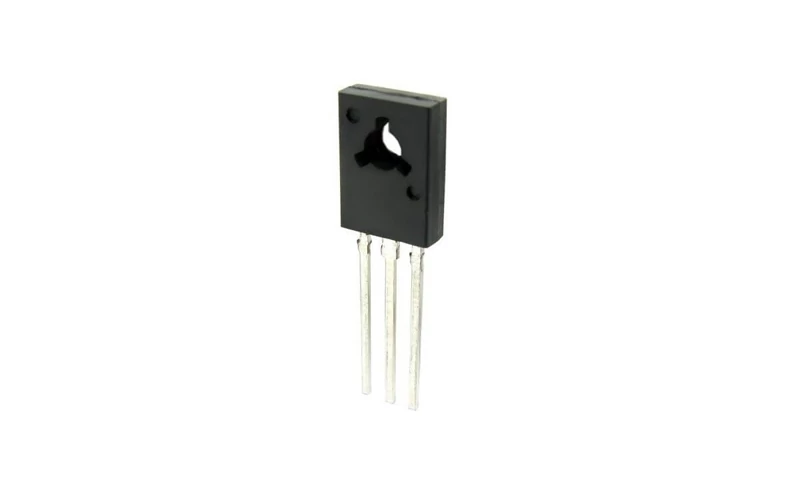

ترانزیستور BT134 پکیج TO-126

ترانزیستور BT134 پکیج TO-126 دیتاشیت Symbol Parameter Test conditions Value Unit VDRM/VRRM Repetitive peak off-state/reverse voltages 600 V I T(RMS) RMS on-state current Non-repetitive peak on-state current full sine wave ;Tmb≦107℃ 4 A I 2 t I 2 t for fusing t=10ms 3.1 A2 s dI G /dt=0.2A/us T2+G+ 50 A/us T2+G- 50 A/us T2-G- 50 A/us dI T/dt Repetitive rate of rise of on-state current after tiggering T2-G+ 10 A/us I GM Peak gate current 2 A VGM Peak gate voltage 5 V PGM Peak gate power 5 W PG(AV) Average gate power over any 20 ms period 0.5 W T stg Storage Temperature -40~150 Tj Operating junction Temperature ℃ ℃ T2 T1 G Equivalent Circuit -40~125
