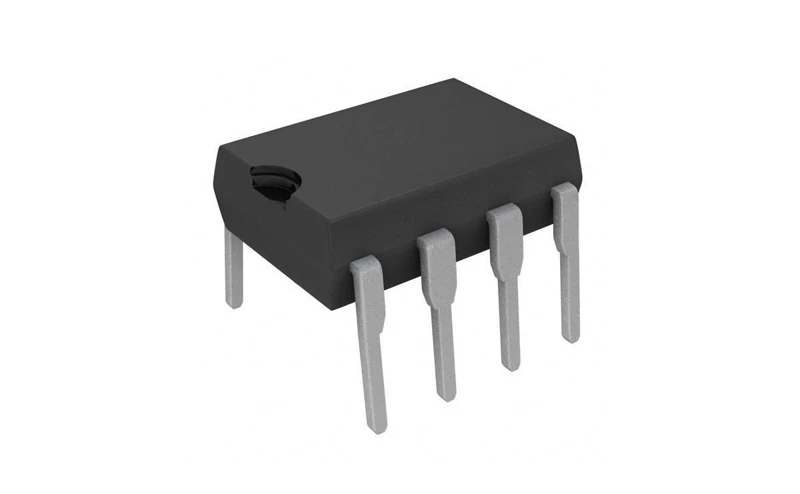

تراشه AT24C01 پکیج DIP تایلند

تراشه AT24C01 پکیج DIP تایلند The Microchip Technology Inc. 24XX01(1) is a 1-Kbit Electrically Erasable PROM (EEPROM). The device is organized as one block of 128 x 8-bit memory with a two-wire serial interface. Its low-voltage design permits operation down to 1.7V with standby and active currents of only 1 μA and 1 mA, respectively. The 24XX01 also has a page write capability for up to 8 bytes of data. Specification Single Supply with Operation down to 1.7V for 24AA01 and 24FC01 Devices, 2.5V for 24LC01B Devices Low-Power CMOS Technology: Read current 1 mA, maximum Standby current 1 μA, maximum (I-temp.) Two-Wire Serial Interface, I2C Compatible Schmitt Trigger Inputs for Noise Suppression Output Slope Control to Eliminate Ground Bounce 100 kHz, 400 kHz and 1 MHz Compatibility Page Write Time: 5 ms, Maximum Self-Timed Erase/Write Cycle 8-Byte Page Write Buffer Hardware Write-Protect ESD Protection >4,000V More than 1 Million Erase/Write Cycles Data Retention >200 Years Factory Programming Available
