بسته 10 عددی گیرنده سه پایه مادون قرمز VS838

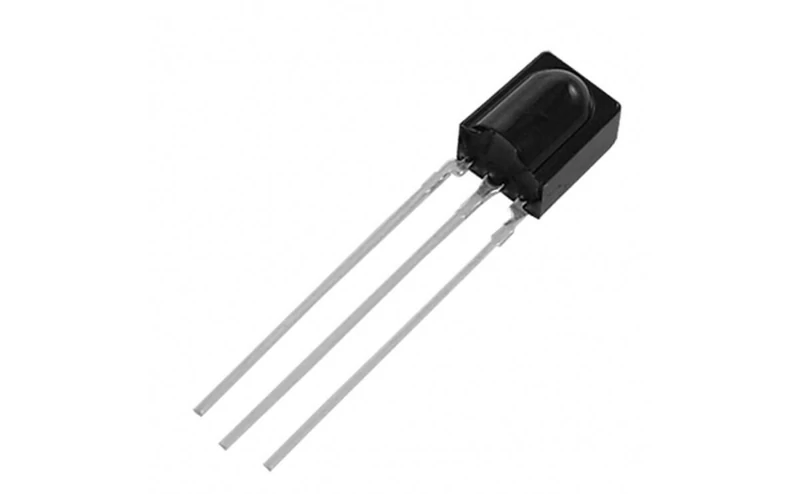

دیتاشیت Infrared Receiver Module 1. Introduction: VS838 includes high-speed PIN photodiode with high sensitivity and low power consumption, high gain before Preamp IC, using epoxy resin plastic package design, the product has passed REACH and SGS certified as environmentally friendly products, as in the infrared remote control system receiver Is used. 2 Characteristics: ● epoxy plastic packaging; ● Wide operating voltage,2.7-5 .5 V; ● Low power consumption; wide-angle and long reception; ● Anti aggravation ability, able to withstand environmental aggravation; ● output matching TTL, CMOS level, active low. 3. Application: ■ audio-visual equipment (speakers, TV, DVD, satellite receiver, etc.); ■ household appliances (air conditioning, fans, lighting, etc.); ■ other infrared remote control products.
