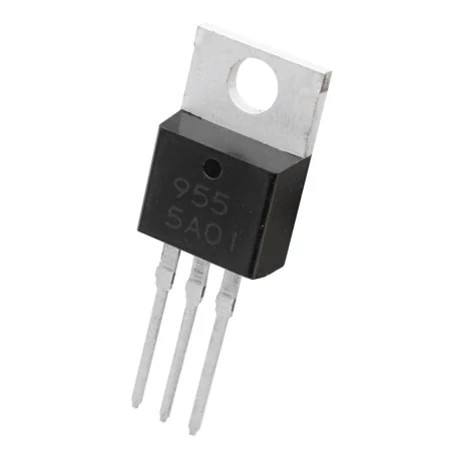

ترانزیستور 2SB955 تایوانی پکیج TO-220
ترانزیستور 2SB955 تایوانی پکیج TO-220
Type Designator: 2SB955
Material of Transistor: Si
Polarity: PNP
Maximum Collector Power Dissipation (Pc): 50 W
Maximum Collector-Base Voltage |Vcb|: 120 V
Maximum Collector-Emitter Voltage |Vce|: 120 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 10 A
Max. Operating Junction Temperature (Tj): 175 °C
Forward Current Transfer Ratio (hFE), MIN: 6000
Noise Figure, dB: -
Package: TO220
