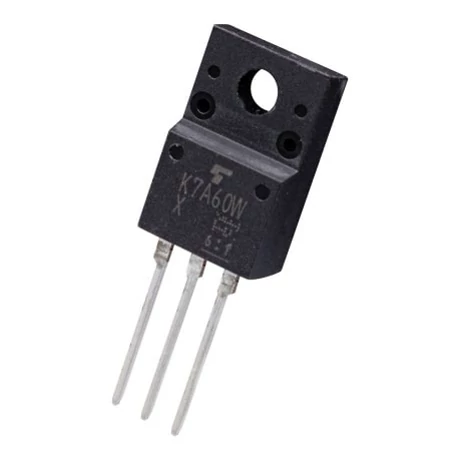

ماسفت K7A60W تایوانی مارک TOSHIBA پکیج TO-220FP
ماسفت K7A60W تایوانی مارک TOSHIBA پکیج TO-220FP
Brand: Toshiba
Type Designator: K7A60W
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 30 W
Maximum Drain-Source Voltage |Vds|: 600 V
Maximum Gate-Source Voltage |Vgs|: 30 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 3.7 V
Maximum Drain Current |Id|: 7 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 15 nC
Rise Time (tr): 18 nS
Drain-Source Capacitance (Cd): 13 pF
Maximum Drain-Source On-State Resistance (Rds): 0.6 Ohm
Package: TO-220FP
