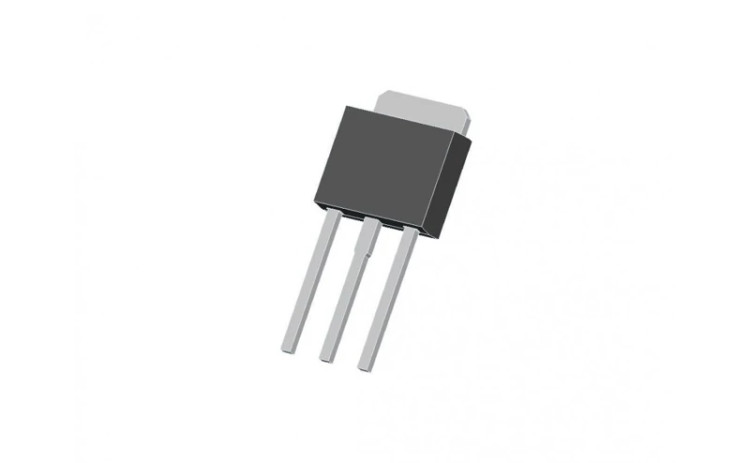

ماسفت TSM6N50 پکیج TO-251

ماسفت TSM6N50 پکیج TO-251 Product Category:     MOSFET RoHS:     RoHS Compliant Details Technology:     Si Mounting Style:     Through Hole Package / Case:     TO-251-3 Number of Channels:     1 Channel Transistor Polarity:     N-Channel Vds - Drain-Source Breakdown Voltage:     500 V Id - Continuous Drain Current:     5.6 A Rds On - Drain-Source Resistance:     1.15 Ohms Vgs - Gate-Source Voltage:     30 V Vgs th - Gate-Source Threshold Voltage:     2 V Qg - Gate Charge:     25 nC Minimum Operating Temperature:     - Maximum Operating Temperature:     + 150 C Packaging:     Reel Channel Mode:     Enhancement Configuration:     Single Fall Time:     45 ns Pd - Power Dissipation:     90 W Rise Time:     40 ns Factory Pack Quantity:     1875 Transistor Type:     1 N-Channel Typical Turn-Off Delay Time:     90 ns Typical Turn-On Delay Time:     20 ns Datasheet
