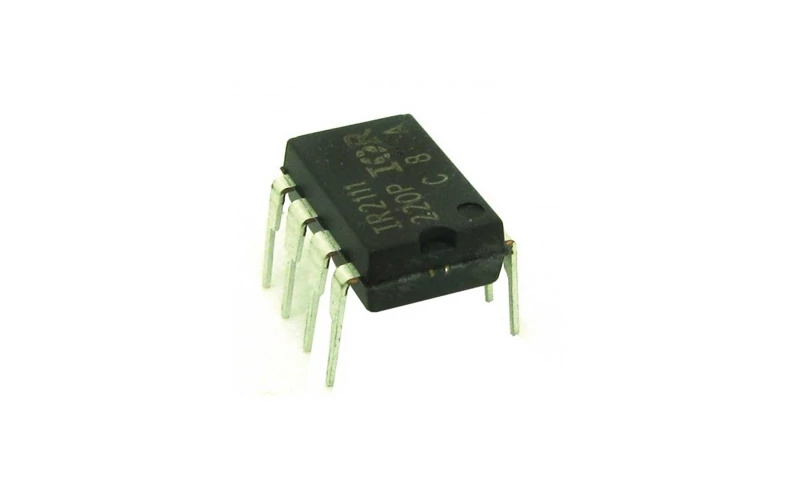

درایور ماسفت IR2111 پکیج PDIP-8

درایور ماسفت IR2111 پکیج PDIP-8 آی سی IR2111 یک درایور HALF-BRIDGE می باشد که برای راه اندازی ماسفت و IGBT می شود. The IR2111 is a high voltage, high speed power MOSFET and IGBT driver with dependent high and low side referenced output channels designed for half-bridge applications. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. Logic input is compatible with standard CMOS outputs. The output drivers feature a high pulse current buffer stage designed for minimum driver cross-conduction. Internal deadtime is provided to avoid shoot-through in the output half-bridge. The floating channel can be used to drive an N-channel power MOSFET or IGBT in the high side configuration which operates up to 600 volts. Product Category:     Gate Drivers RoHS:     RoHS Compliant Details Mounting Style:     Through Hole Package/Case:     PDIP-8 Product:     Half-Bridge Drivers Number of Drivers:     2 Driver Output Current:     200 mA Configuration:     Inverting, Non-Inverting Rise Time:     130 ns Fall Time:     65 ns Supply Voltage - Max:     20 V Supply Voltage - Min:     10 V Operating Supply Current:     180 uA Maximum Operating Temperature:     + 125 C Type:     High and Low Side Driver Features:     Synchronous Height:     5.33 mm (Max) Length:     10.92 mm (Max) Logic Type:     CMOS Maximum Turn-Off Delay Time:     150 ns Maximum Turn-On Delay Time:     750 ns Minimum Operating Temperature:     - 40 C Number of Outputs:     2 Operating Supply Voltage:     10 V to 20 V Pd - Power Dissipation:     1000 mW Propagation Delay - Max:     950 ns Factory Pack Quantity:     50 Width:     7.11 mm (Max) Unit Weight:     1 g
